EAN: 8436555504809

Femoral SR08E

SR08E

Need help with your budget? Call us now.
(+34) 968 205 383
We help you with financing.
Request a quote

Downloads

Description

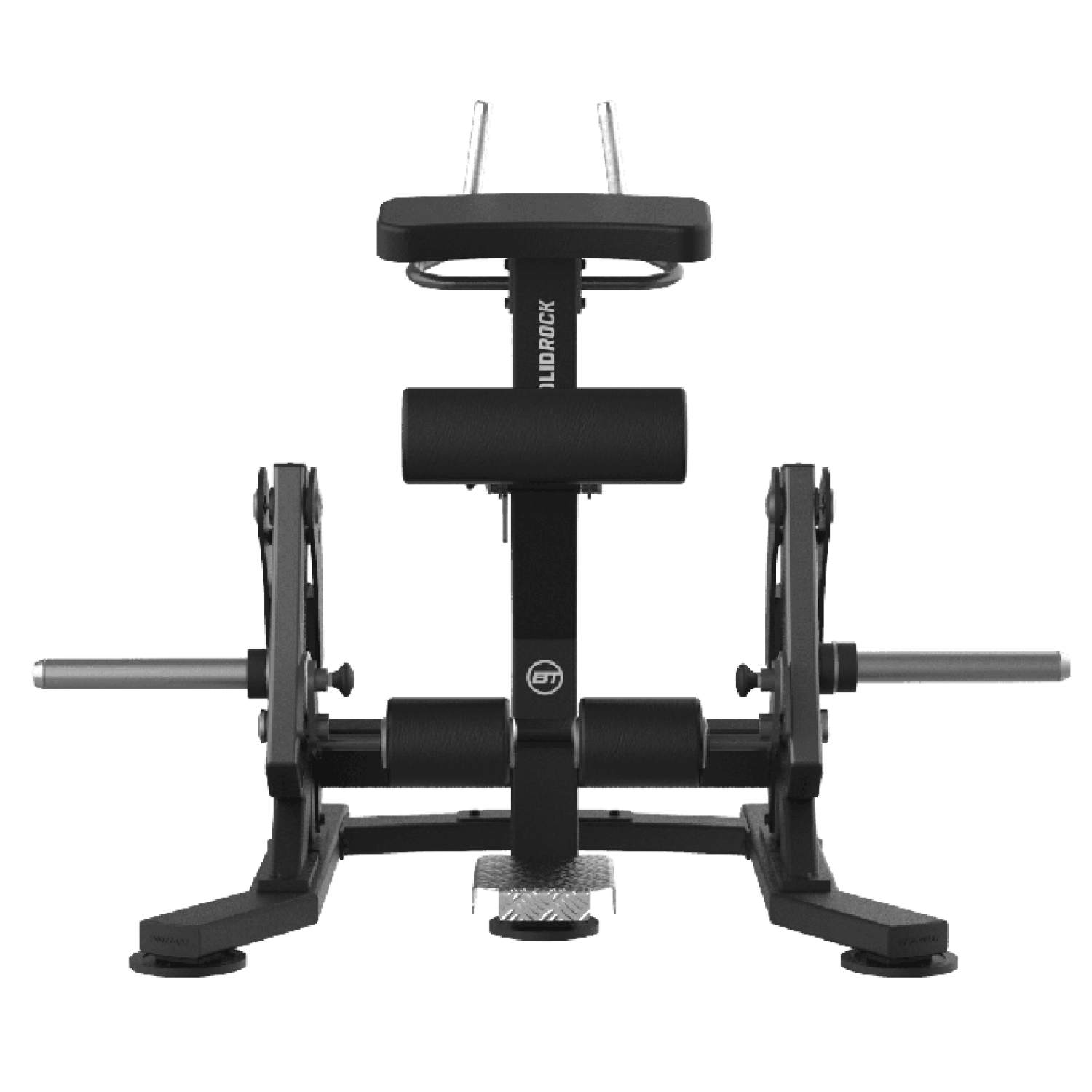

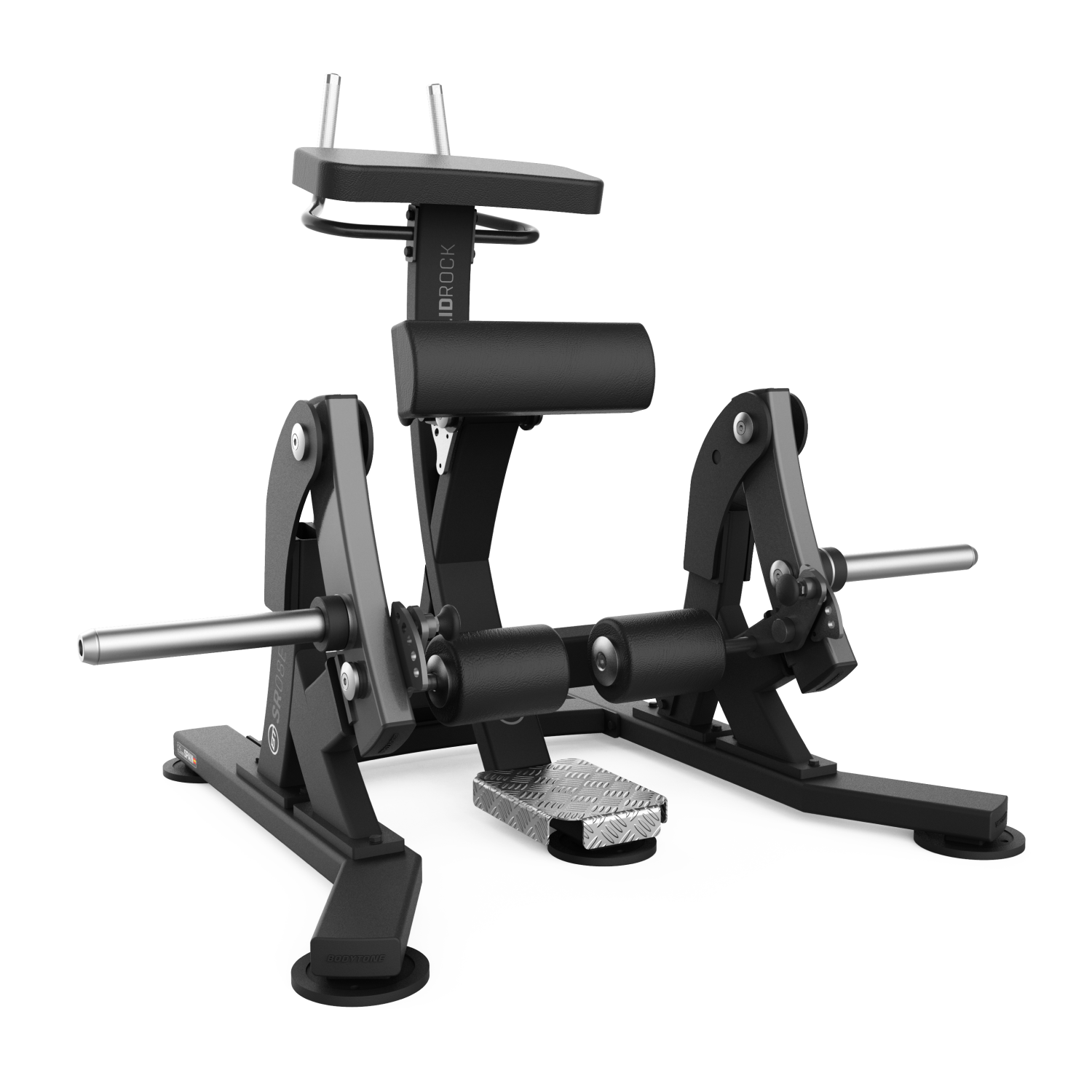

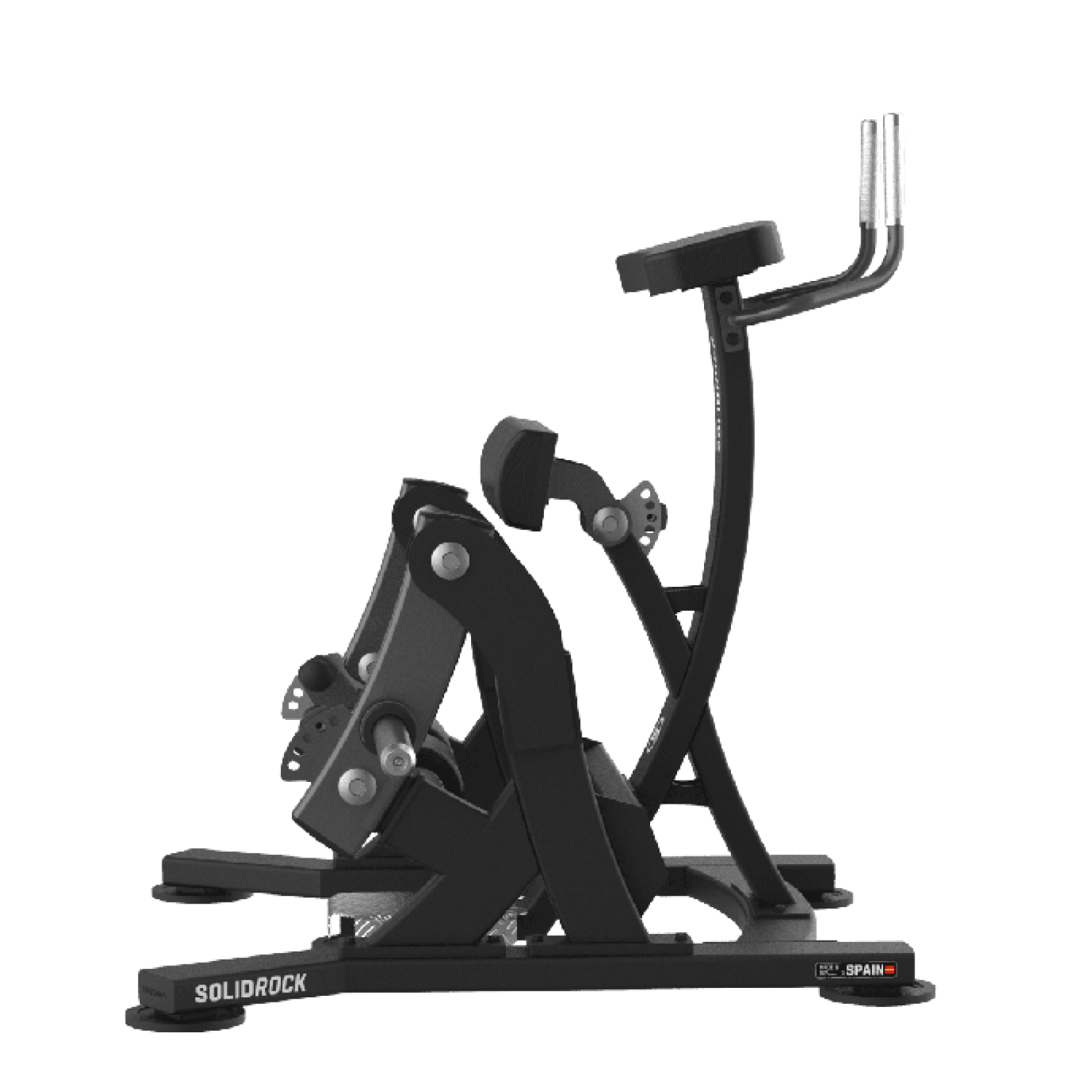

Bodytone professional SR08E femoral exercise machine

Solid Rock’s professional weight training machines stand out for design and innovation. They have a careful aesthetic and are equipped with the latest technology.

In the line of Bodytone Solid Rock strength machines, our brand is committed to a completely renewed design where curves and design prevail along with the corporate color, green, which gives it that sporty and elegant air.

Solid Rock equipment uses technology from the automotive industry so that the structure and paint last up to 10 years or more. A guarantee of quality, resistance and durability.

Additional information

Additional information

Product Range

Training type

Product Line

Sports

Net Weight

138 kg

structure

110 x 52 mm steel tubes with 3 mm thick. Soldier according to the regulation of UNE 10219 , Quality S-275-J0H. Enriched and optimized to maintain a constant section in the curved process , thus avoiding sensitive areas and minimizing the break rate. Cold curved process , through 4 roller system , avoiding all deformation in the process and maintaining physical characteristics throughout the piece. Closed welding perimeter at structural points and union plates.

Materials and finishes

20 mm thick rubber finishes in disc supports. 50 mm thick rubber finishes to support moving parts.

units

one

Use zone

Inside

Weight

Painting Process

3 layers of paint. Upon and stabilized steel by total immersion of the pieces in different degreasing solutions to guarantee a perfect and complete cleaning of the base material. Antioxidant Printing to guarantee adequate isolation of internal oxidation and a good adhesion of the paint. 2 Final layers of epoxy paint of polyester powder , drying 240oC.

Assembly Process

10 mm plaque system against plate , to avoid slacks and torsions in the maximum effort areas. An ergonomic and biomechanical study to optimize each exercise.

design

Study of biomechanics and ergonomics under the supervision of associated professionals and athletes. After a long design period; From the sketch , research in Motorering , production of prototypes , test by professional athletes our products are market.

Assembled Dimensions

130 x 157 x 118 cm

Work zone

Lower train

Bases

4 Anti -Deliver Conteers.

bearings

SKF Double belt rollers , housed in a closed bush , anti slack , ensuring a constant movement direction.

Regulation Levels

Adjustable support by pop -pin. Regulation system by means of a single bolt , manufactured in techno-polymer with 750 kg breakage index.

Grips

Anodized aluminum , rolled favoring grip.

security system

Security lever

axes

10mm thick plates cut to laser with another 10mm thick plate to reinforce , to get a soft movement without slack or torsions produced by the continuous use or load.

Loading capacity

310 mm supports for 6 20 kg BODYTONE discs per arm (up to 240 kg for starting)

Measures

130 x 157 x 118 cm
