Personal Trainer Machine PTM


Need help with your budget? Call us now.
(+34) 968 205 383
We help you with financing.
Request a quote

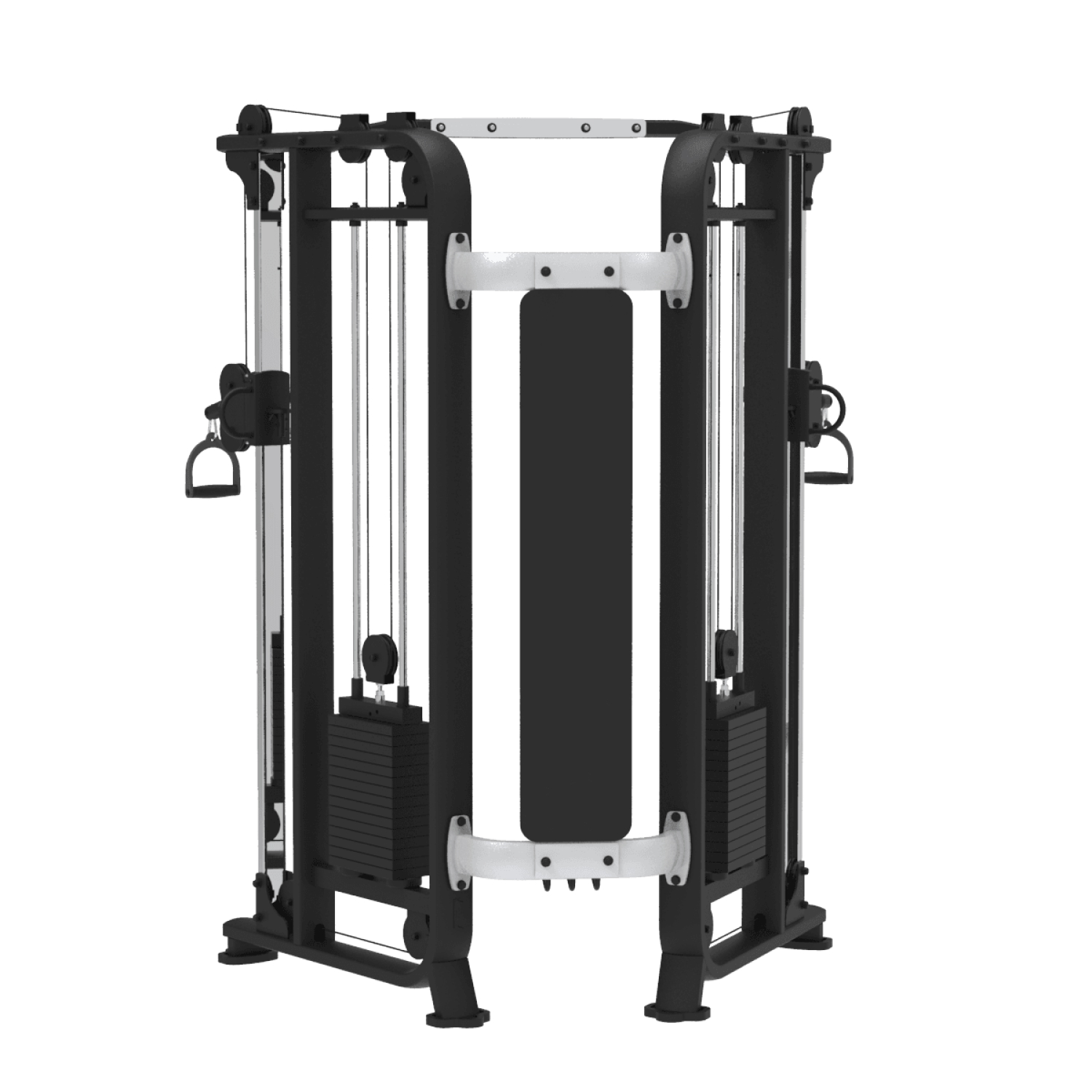

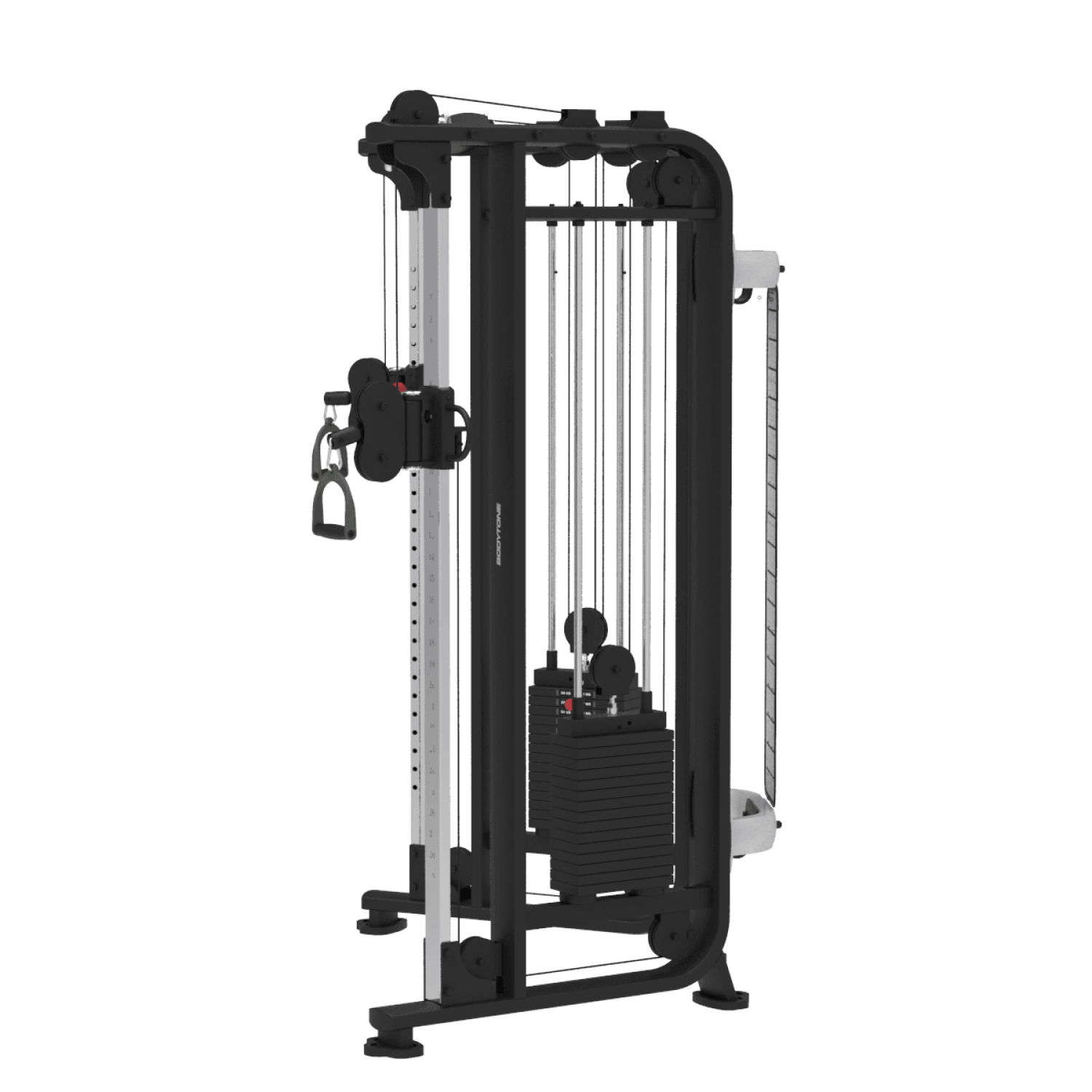

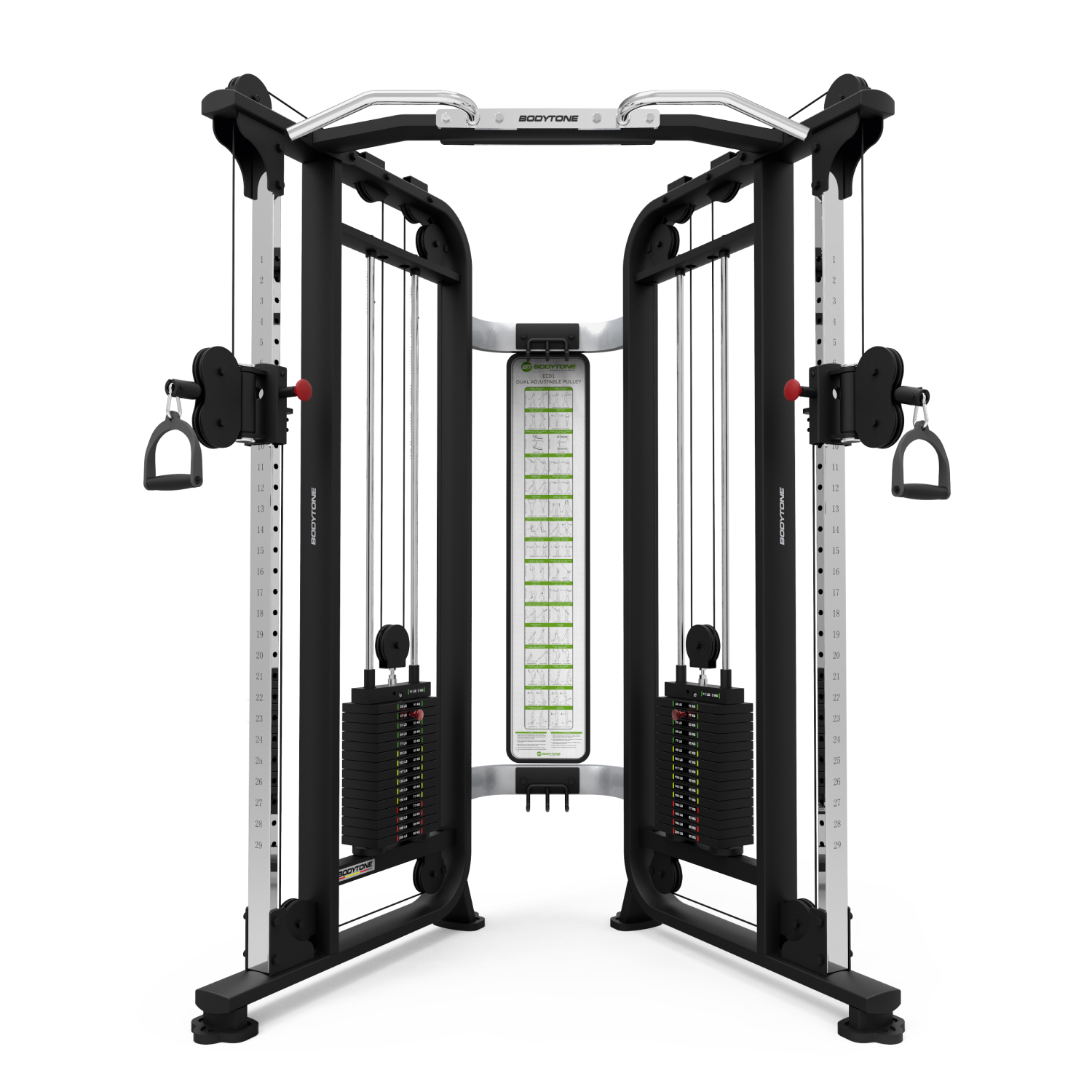

This functional training station has 2 columns of 95 kg. Each of them has 2 height-adjustable pulleys for multipurpose training.

Ideal for personal training studios, hotels and all kinds of gyms.

Additional information

Additional information

Product Range

Training type

Product Line


Net Weight

306 kg


High strength 3 mm steel tube, laser cut for greater precision , and welded by robotic process.




Use zone




6 mm mm steel cable covered with PVC with a resistance of up to 900 kg.

Comfort and extras

Includes upper grip for dominated and mans to grip on the pulleys.

Painting Process

7 layers of paint. 3 layers of protection and 4 layers of paint. Upon and stabilized steel by total immersion of the pieces in different degreasing solutions to guarantee a perfect and complete cleaning of the base material. Antioxidant Print to guarantee adequate insulation of internal oxidation and good adhesion of paint. 2 Final layers of epoxy paint of polyester powder , drying at 240ºC.


Study of biomechanics and ergonomics under the supervision of associated professionals and athletes. After a long design period; From the sketch , research in Motorering , production of prototypes , test by professional athletes , our products go on the market

Assembled Dimensions

165 x 106 x 224 cm

Work zone

Full Body


Manufactured in 3M non -slip material to ensure support safety.

Guide de placas

Carbon solid steel calibration and hardened double chrome treatment for a better sliding of the weight plates.

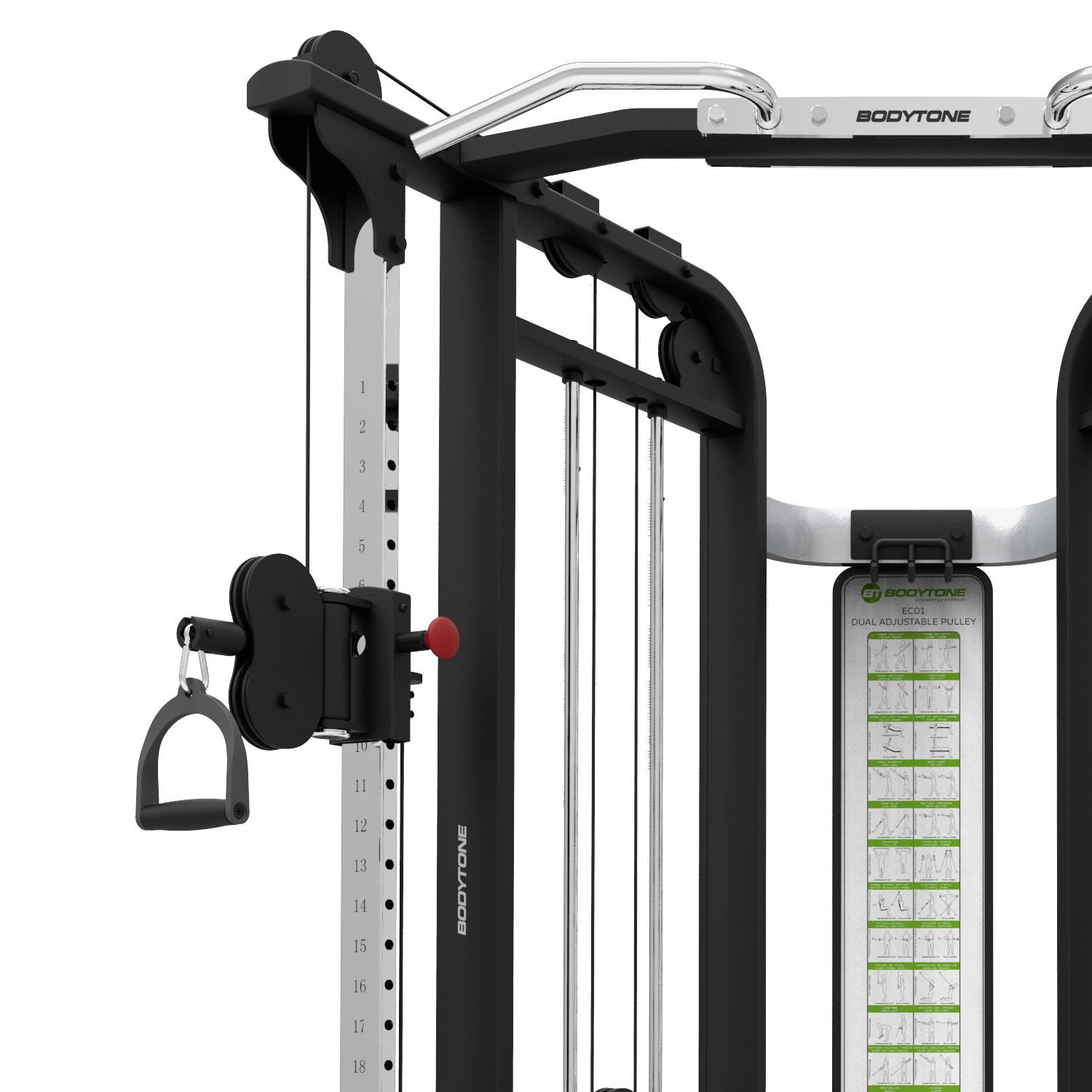

Nylon manufactured pulley with an internal bearing and silent operation that has 29 positions in height

plates de peso

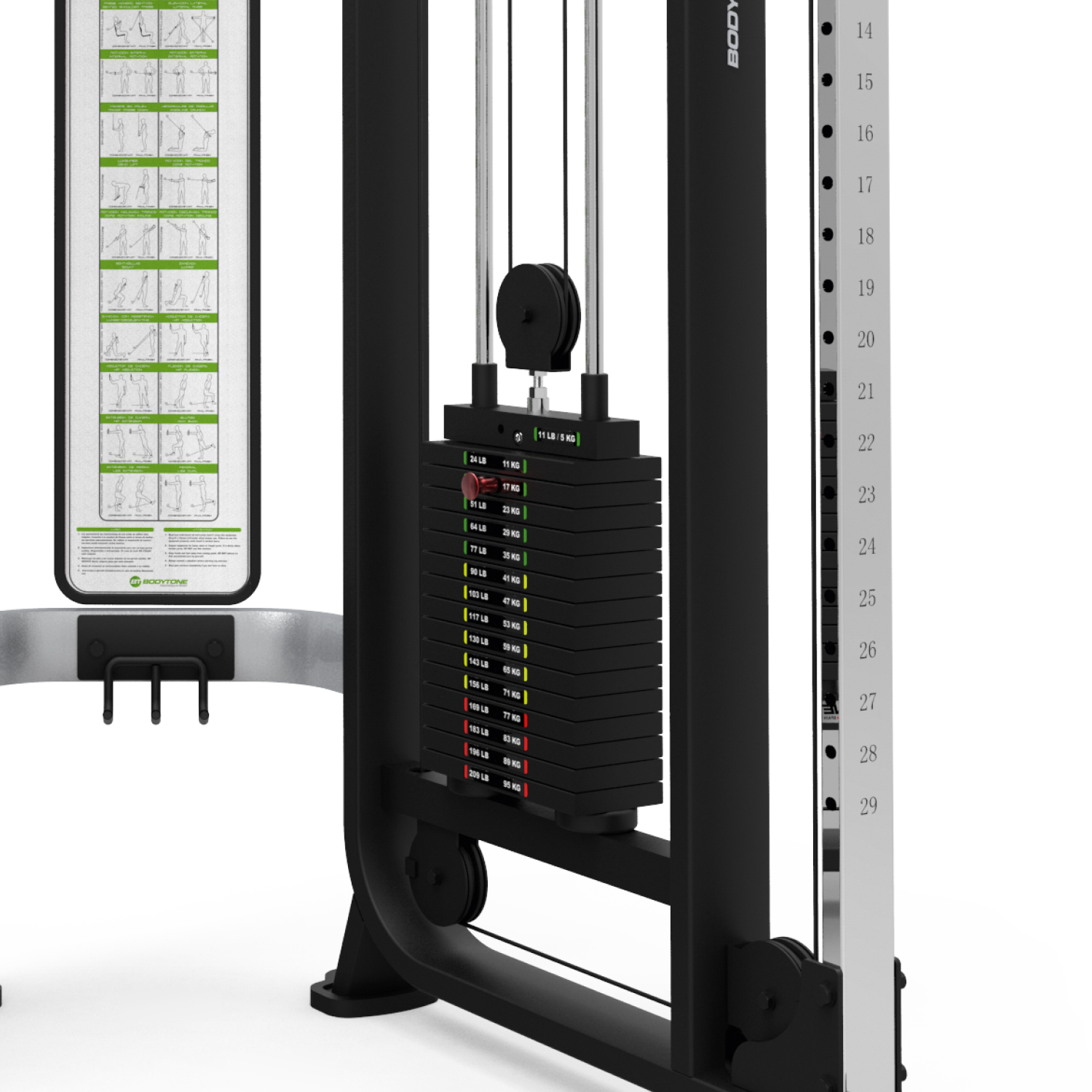

2 columns of 95 kg (125 kg option)

Selector de peso

Magnetic with ergonomic rotor and safety cable.


Leather upholstery , resistant to perspiration , antiallergic and antibacterial , with special high density foam interior.

Loading capacity

1 column of 95 kg (125 kg option)


165 x 106 x 224 cm

Pieces moviles

Mobile steel parts ST52 Beveling , calibrated and machined.
