EAN: 8436555502010

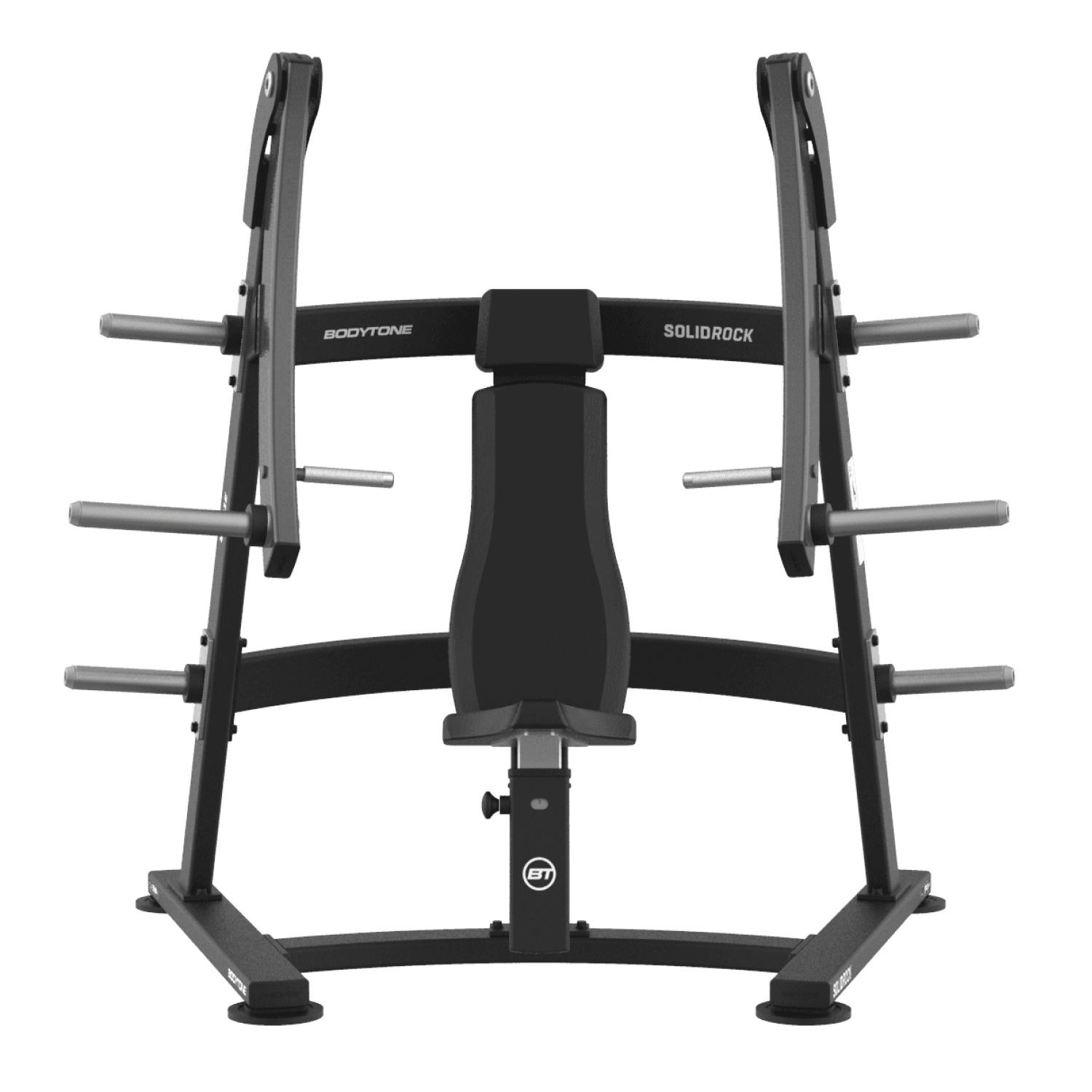

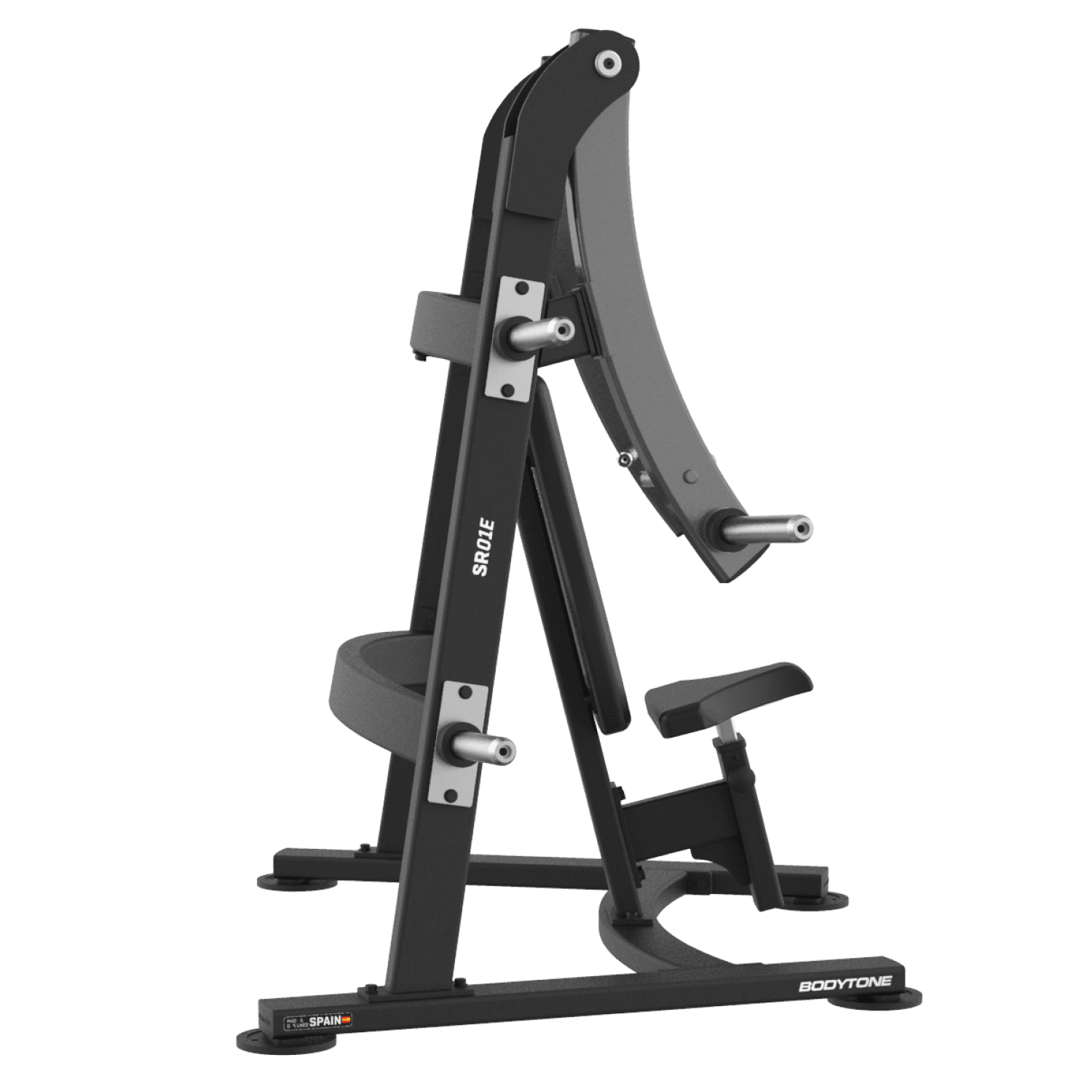

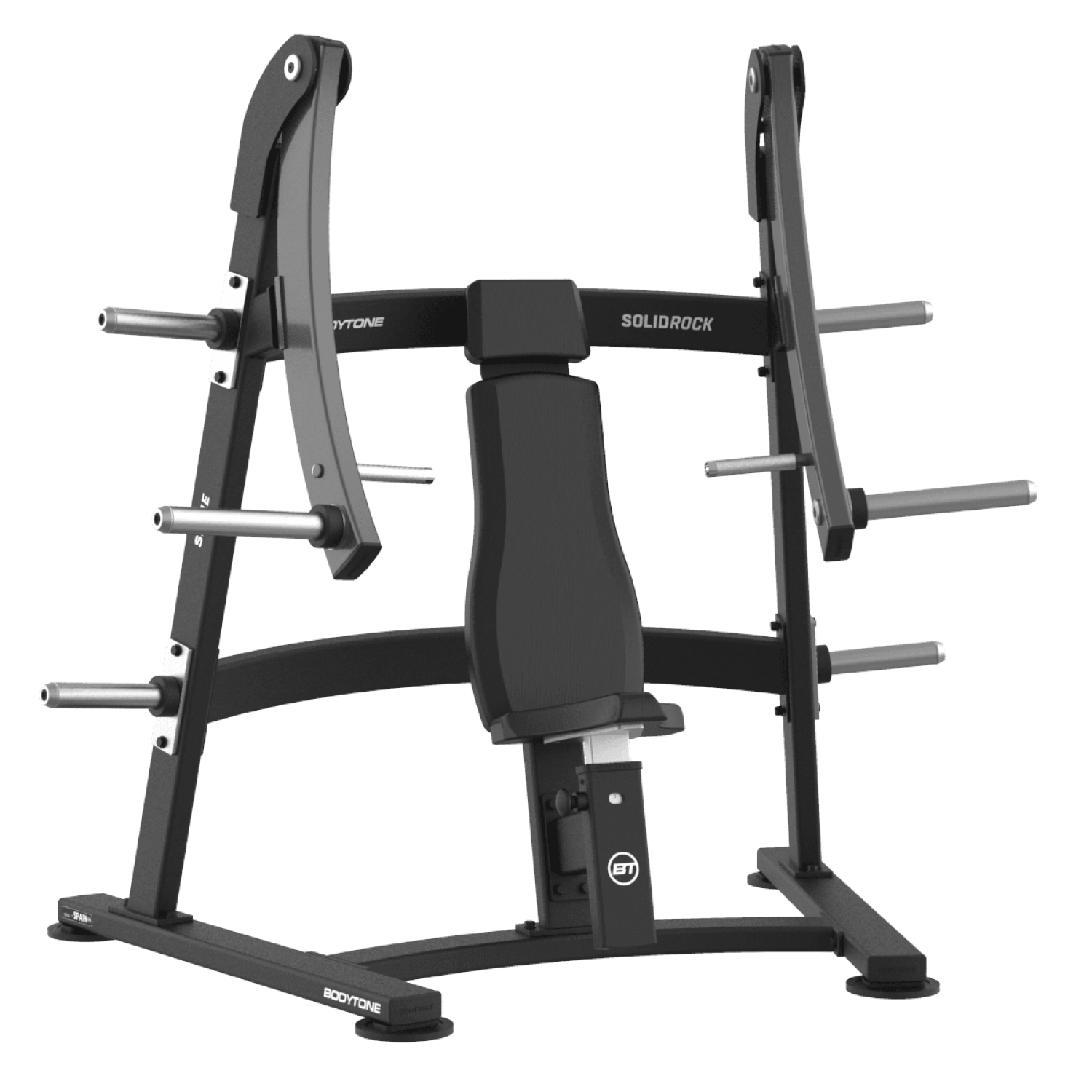

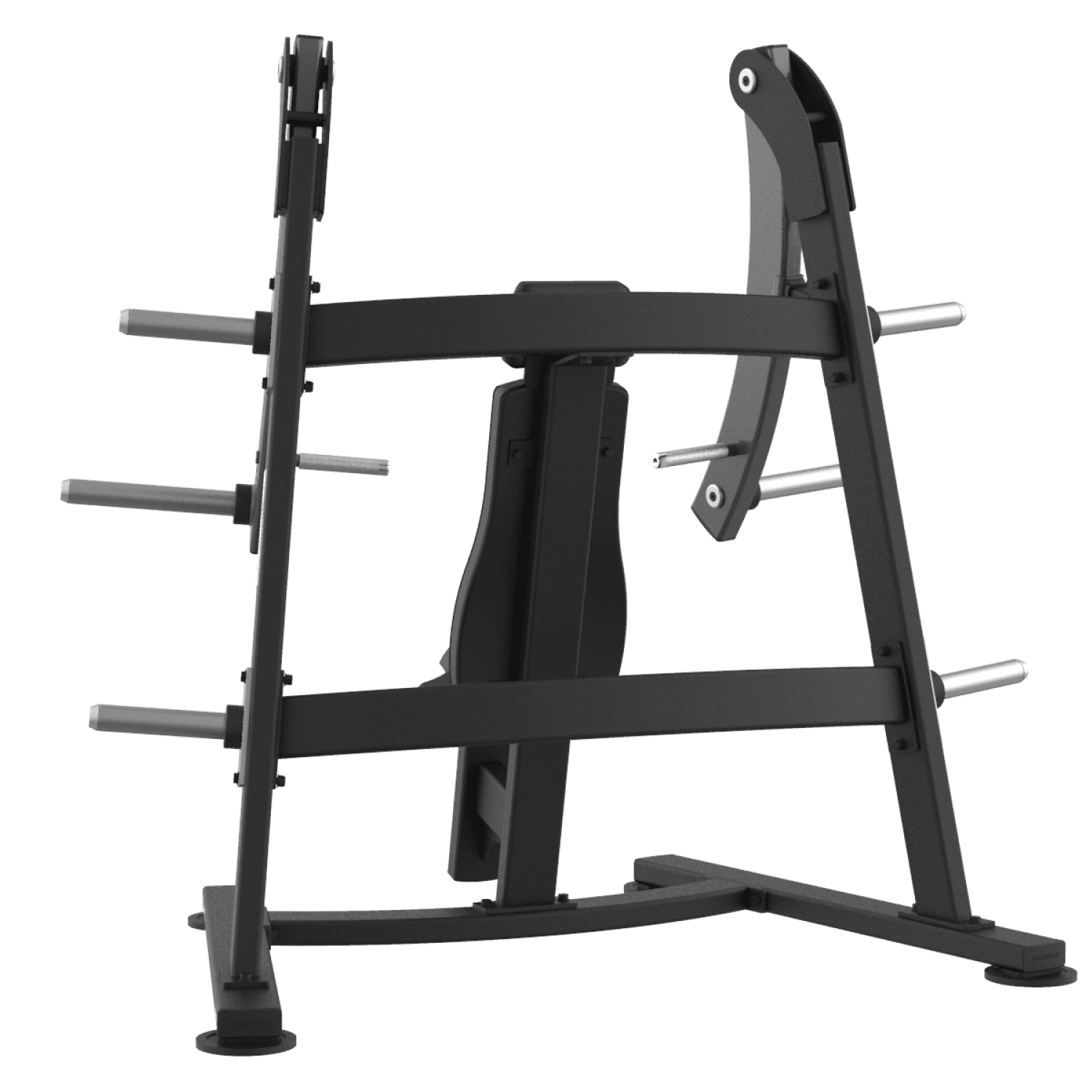

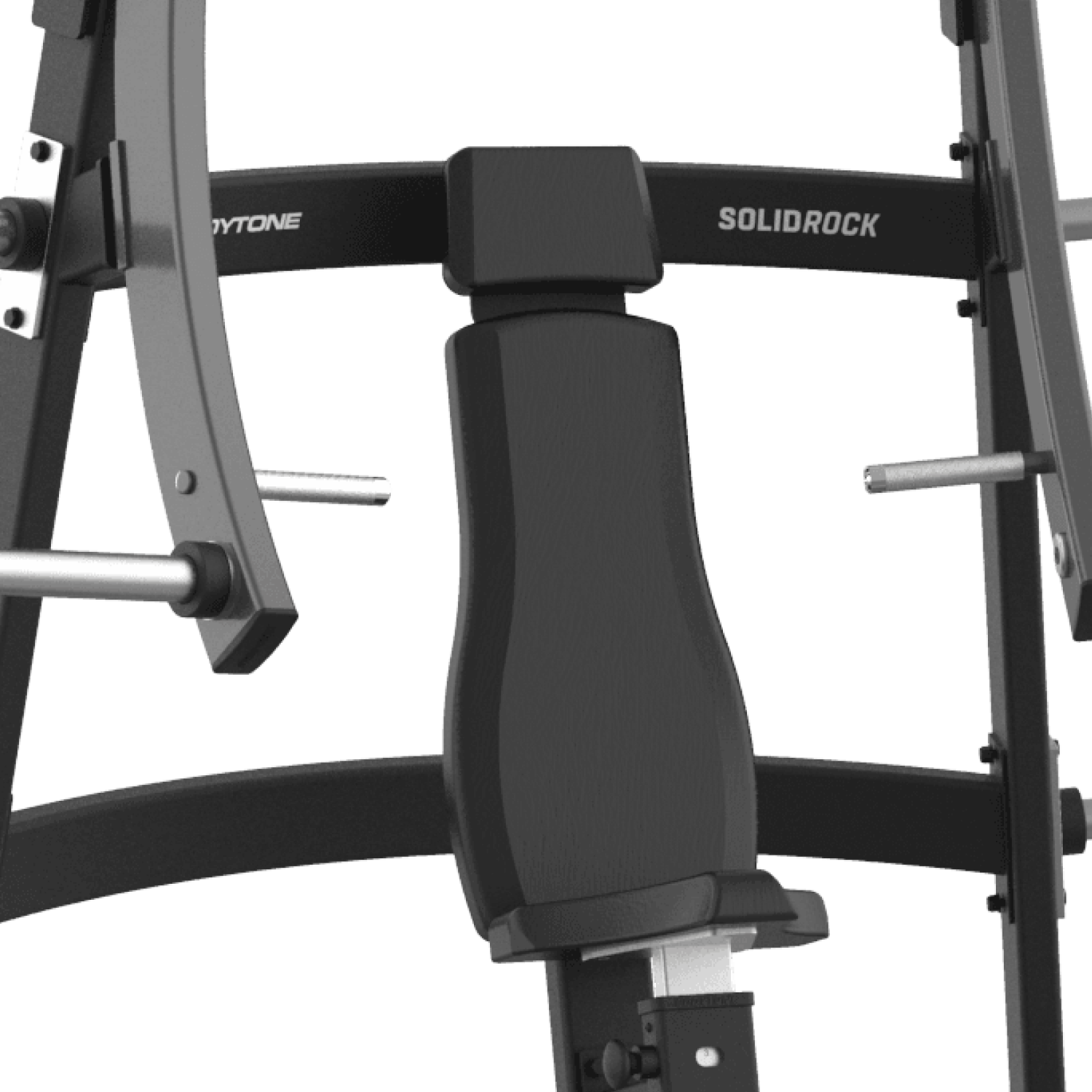

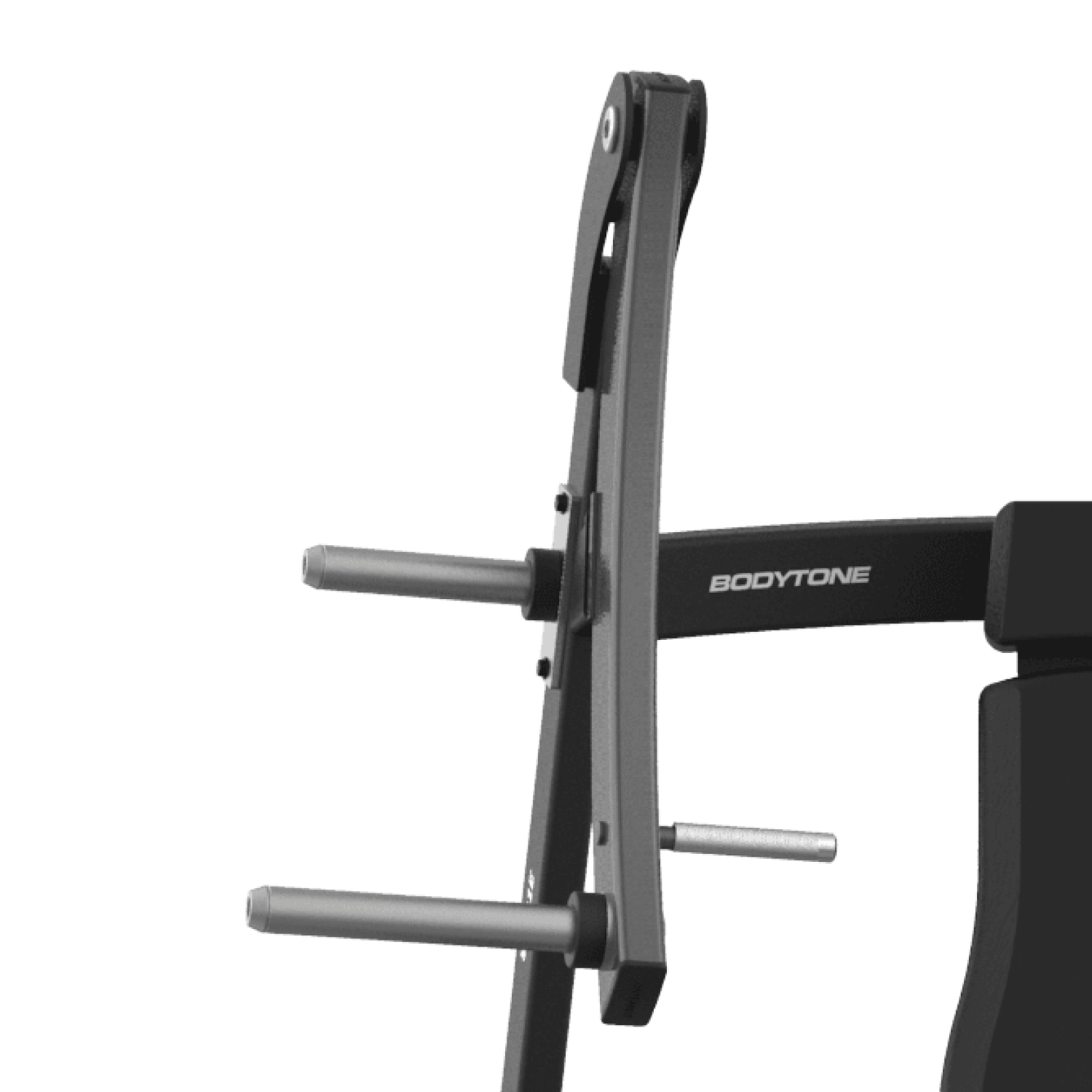

Vertical Press SR01E


Need help with your budget? Call us now.
(+34) 968 205 383
We help you with financing.
Request a quote



Bodytone presents its Squat from the Solid Rock line, an elegant, simple and versatile machine that perfectly accompanies your movements in the many exercises you do. The exclusive design of the Solid Rock line contributes to the creation of a machine with great biomechanical performance.

Additional information

Additional information

Product Range

Training type

Product Line


Net Weight

150 kg


110 x 52 mm steel tubes with 3 mm thick. Soldier according to the regulation of UNE 10219 , Quality S-275-J0H. Enriched and optimized to maintain a constant section in the curved process , thus avoiding sensitive areas and minimizing the break rate. Cold curved process , through 4 roller system , avoiding all deformation in the process and maintaining physical characteristics throughout the piece. Closed welding perimeter at structural points and union plates.

Materials and finishes

20 mm thick rubber finishes in disc supports. 50 mm thick rubber finishes to support moving parts.



Use zone



Painting Process

3 layers of paint. Upon and stabilized steel by total immersion of the pieces in different degreasing solutions to guarantee a perfect and complete cleaning of the base material. Antioxidant Printing to guarantee adequate isolation of internal oxidation and a good adhesion of the paint. 2 Final layers of epoxy paint of polyester powder , drying 240oC.

Assembly Process

10 mm plaque system against plate , to avoid slacks and torsions in the maximum effort areas. An ergonomic and biomechanical study to optimize each exercise.


Study of biomechanics and ergonomics under the supervision of associated professionals and athletes. After a long design period; From the sketch , research in Motorering , production of prototypes , test by professional athletes our products are market.

Assembled Dimensions

185 x 107 x 173 cm

Work zone

Upper train


4 Anti -Deliver Conteers.


SKF Double belt rollers , housed in a closed bush , anti slack , ensuring a constant movement direction.

Regulation Levels

Adjustable seat by pop -pin. Regulation system by means of a single bolt , manufactured in techno-polymer with 750 kg breakage index.


Anodized aluminum , rolled favoring grip.


10mm thick plates cut to laser with another 10mm thick plate to reinforce , to get a soft movement without slack or torsions produced by the continuous use or load.

Loading capacity

310 mm supports for 6 20 kg BODYTONE discs per arm (up to 240 kg for starting)


185 x 107 x 173 cm
