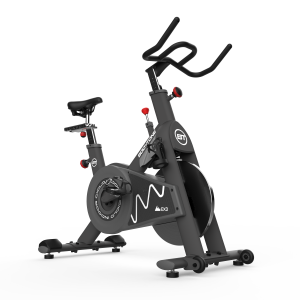

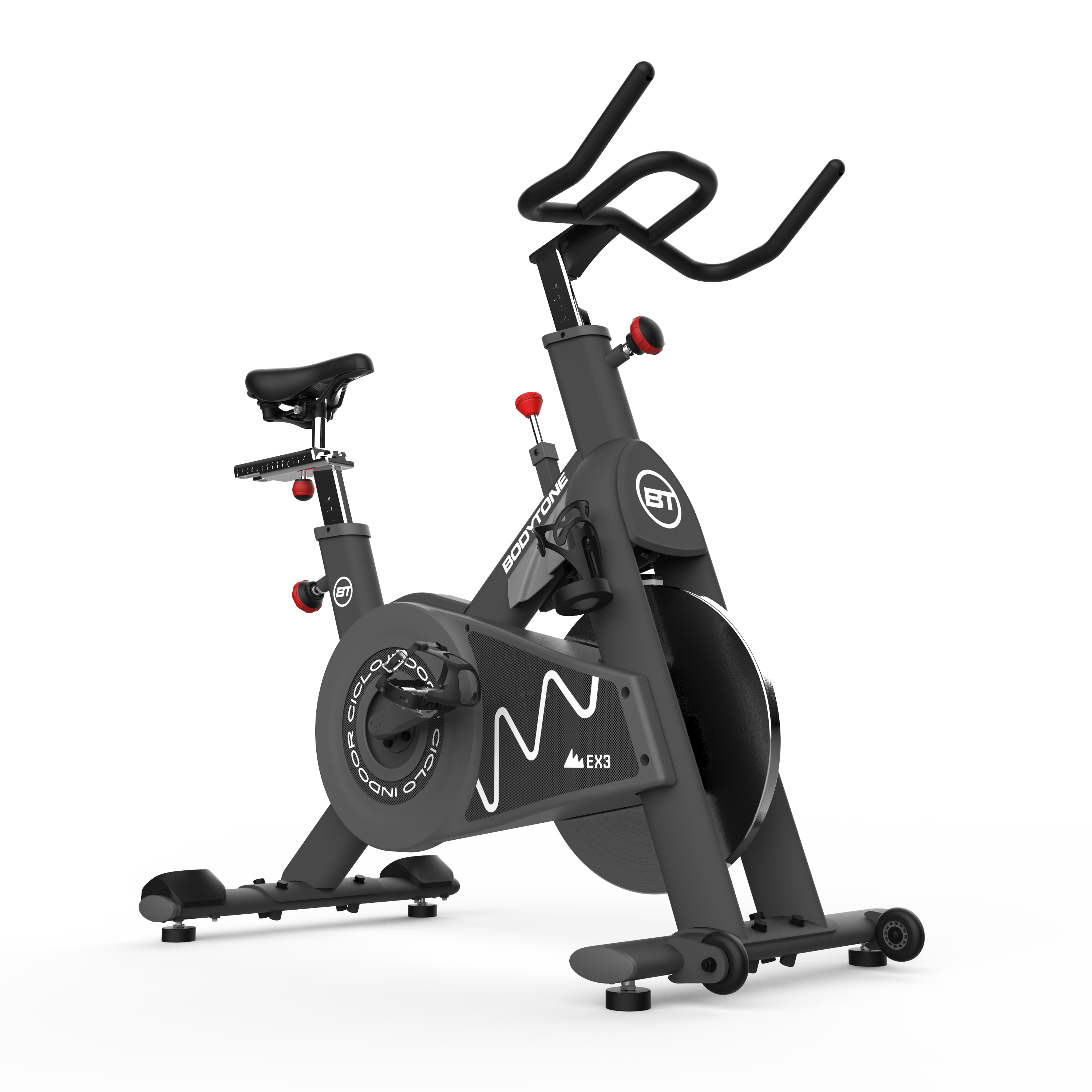

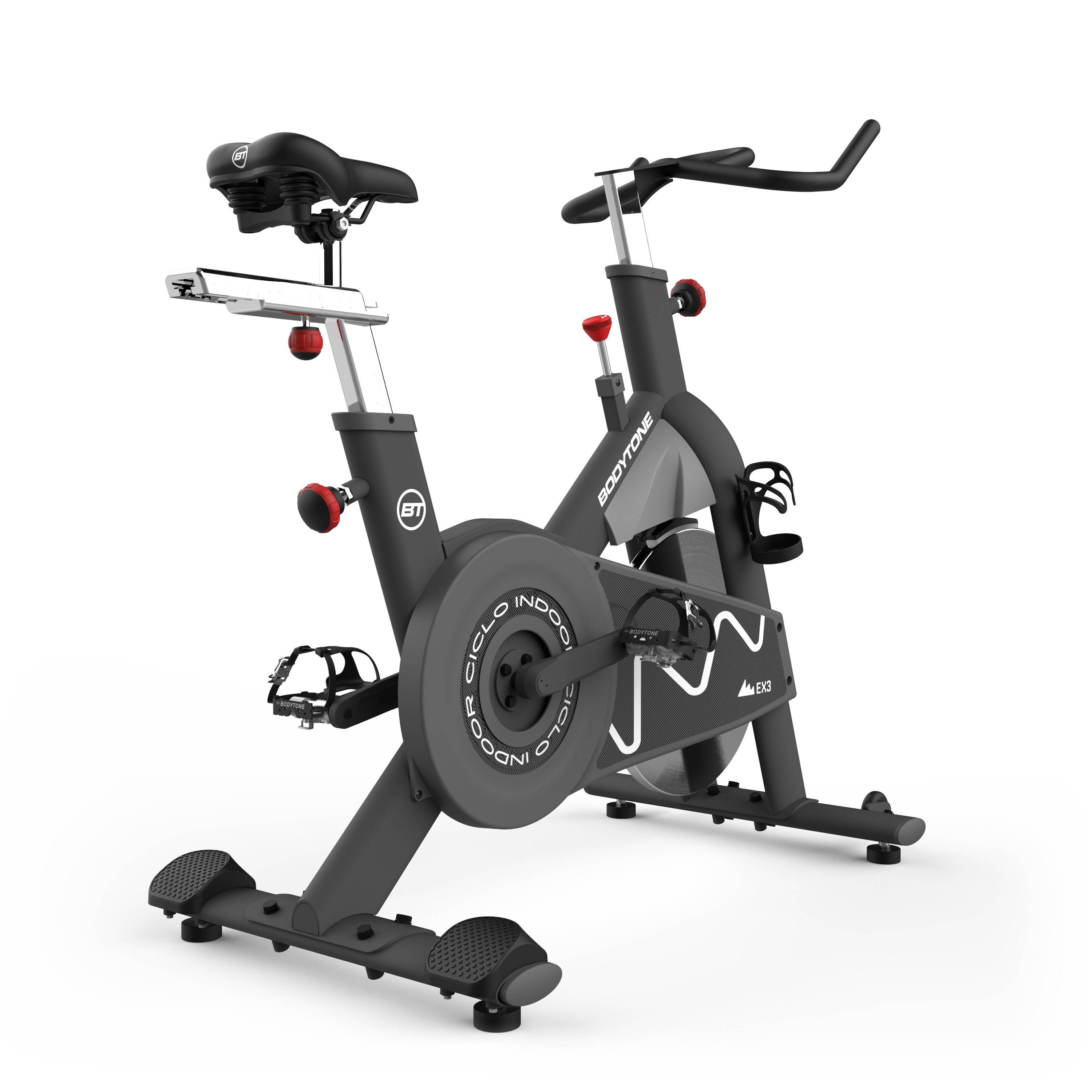

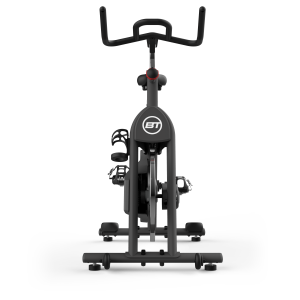

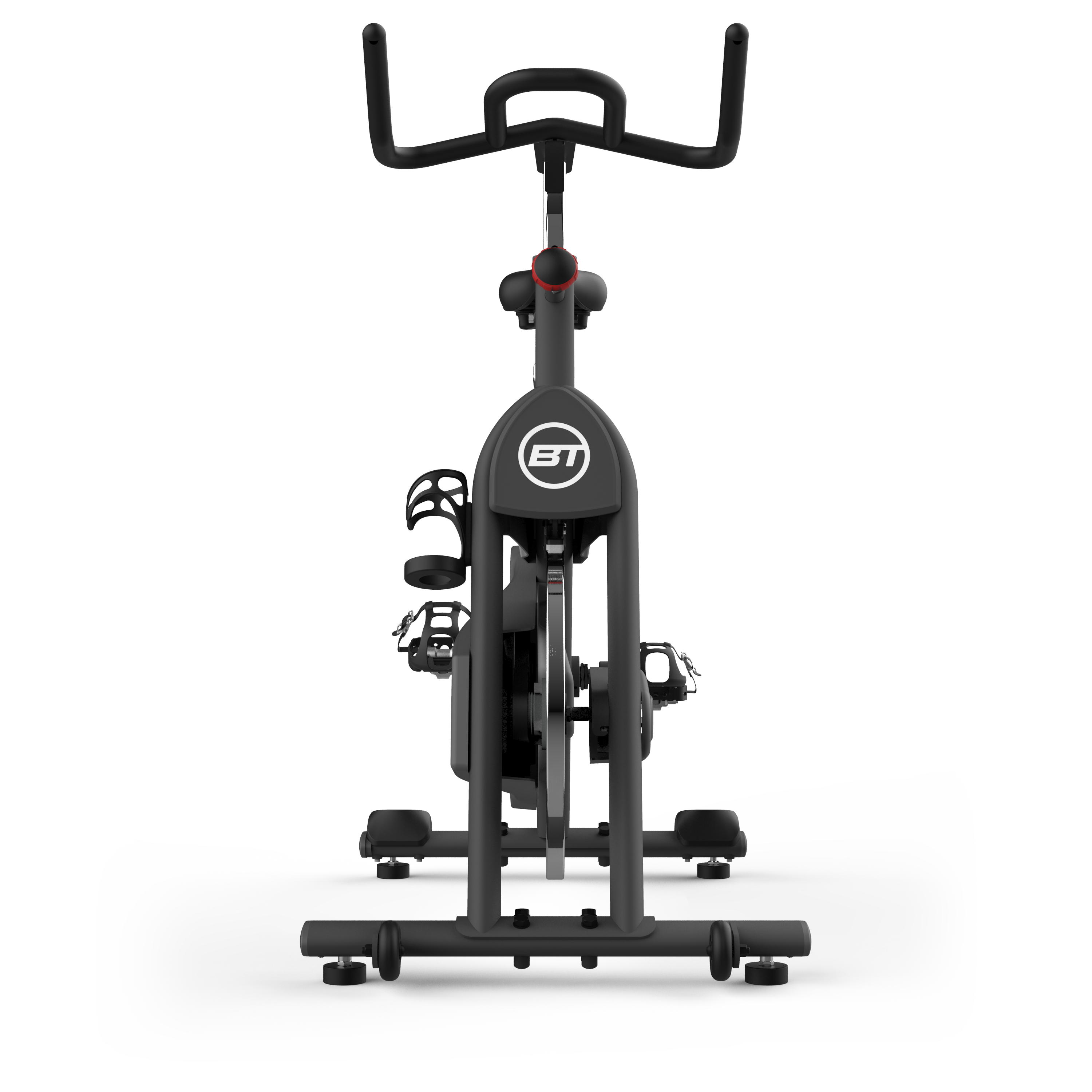

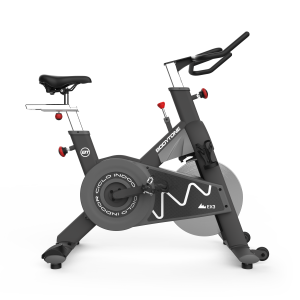

EX3 Professional Indoor Bike
EX3Downloads
Description
Inspired by the movement of road cycling and triathlon, the EX3 is a high-performance indoor bike for professional athletes and together with the Bodytone M20 display an exhilarating power trainer for all types of athletes. The EX3 provides exceptional results for facilities working with specific cycle training, high-intensity interval training, and resistance training.
It offers a unique set of features like its built-in shell-proof that protects it against damage caused by moisture, its POLY-V® belt transmission system that through the 6 ribbed Poly-V belts with Kevlar cords have been designed to offer an incredibly fluid and smooth race, with an extremely realistic feel. Kevlar strings are stronger and last longer than materials traditionally used in belt drive systems, resulting in a virtually maintenance-free product that requires no tensioning or lubrication.
Additional informationAdditional information
| Product Range | |
|---|---|
| Training type | |
| Product Line | |
| Sports | |
| Connectivity | M20X or BTC2 device is necessary to connect to measurement apps |
| Connectivity with Apps | |
| Elevation Wheels | Yes. The bike has 4 height leveling to facilitate its stability. |
| Gross Weight | 67.9 kg |
| Net Weight | 62.3 kg |
| Maximum User Weight | 150 kg |
| box dimensions | 113x33x94 cm |
| structure | Steel tube (3 mm thick) welded by robotic process |
| Materials and finishes | Lateral and frontal protector of the steering wheel and the pedalier axis manufactured in TPR , which avoids oxide and corrosion produced by sweat. Rear protectors in ABS for stretching. Upper steel handlebars E-220 + CR2 S2 2.5 mm thick , with 3-phase chromed surface finish. Speaker for laser -cut position selector. Optional aluminum. STRUCTURE -STEEL TUBO (3 mm thick) welded by robotic process. |
| units | one |
| Weight | |
| Transmission | Poly-V® Correa Transmission System and Kevlar strings that offer a fluid and soft race. |
| Heart Rate | Connectivity with HR bands through the M20X or BTC2 device |
| Comfort and extras | Bottle rack |
| Brake | Brake by superior shoe with friction and lock system. |
| Console Functions | Speed ​​, rpm , calories , time , distance |
| Transport Wheels | Yes. The product carries wheels to facilitate transportation |
| Painting Process | 3 layers of paint. Upon and stabilized steel by total immersion of the pieces in different degreasing solutions to guarantee a perfect and complete cleaning of the base material. Antioxidant Printing to guarantee adequate isolation of internal oxidation and a good adhesion of the paint. 2 Final layers of epoxy paint of polyester powder , drying 240oC. |
| handlebar | Ergonomic handlebar and coated in porous foam , antiallergic and easy to clean. In steel with 8 positions in vertical. Types of pop -pin adjustment. |

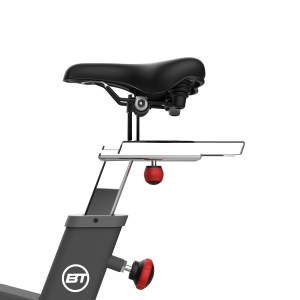

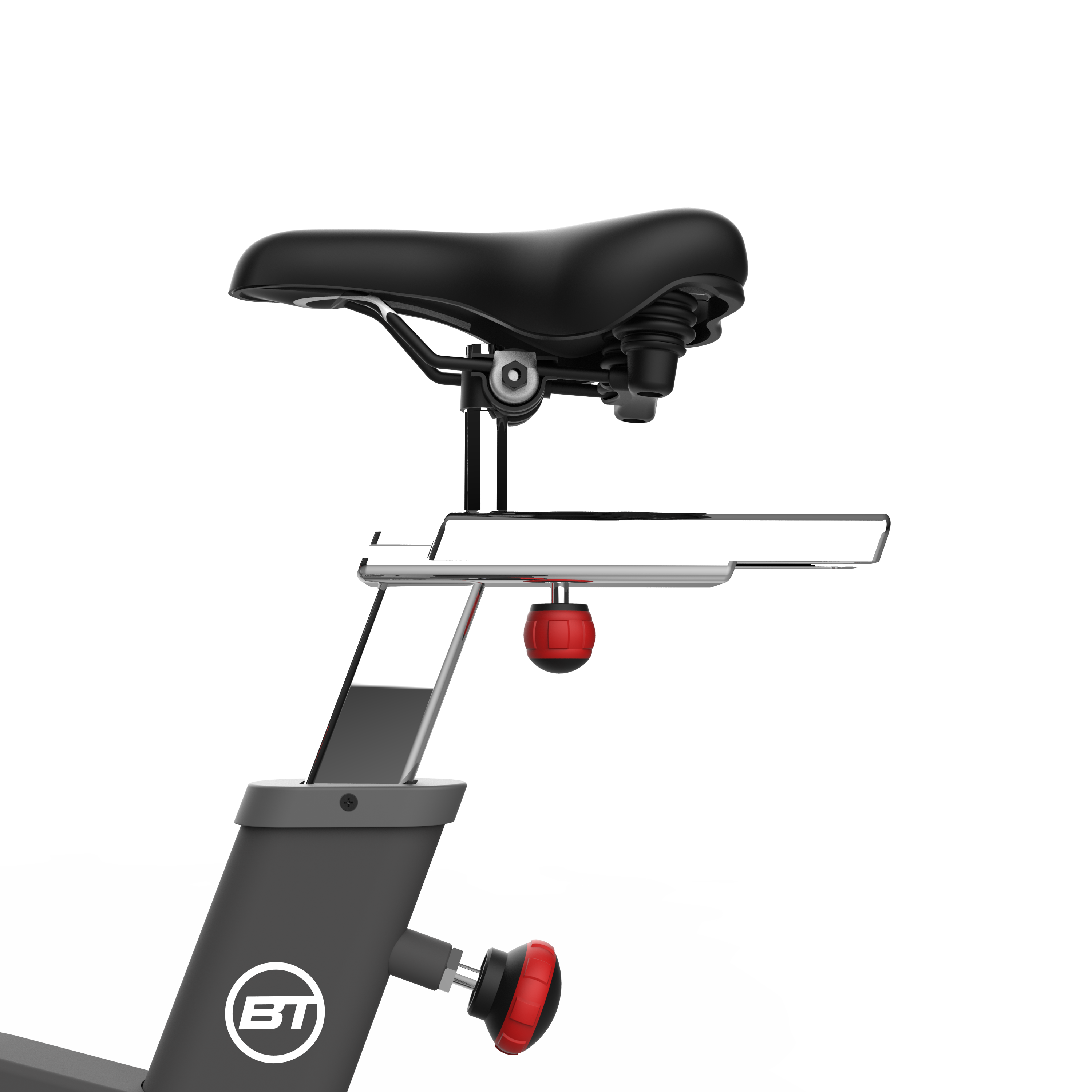

| saddle | Padded base in EVA special for the practice of the Indoor cycle. covered in skin simile. Exclusive Bodytone Design with Extra Comfort Pelvic Zone. Seat with damping system. |
| Pedals | SPD mixed. VP – X93. Double use , perfect for use with cycling shoes or sneakers. |
| Protections | Lateral and frontal protector of the steering wheel and the pedalier axis manufactured in TPR , which avoids oxide and corrosion produced by sweat. Rear protectors in ABS for stretching. |
| Emergency Brake | Press emergency brake via pop -pin |
| Assembled Dimensions | 125 x 60 x 105 cm |
| Measures | 125 x 60 x 105 cm |
| Inertial Mass | 20 kg front inertail wheel with stainless steel braking area. |
